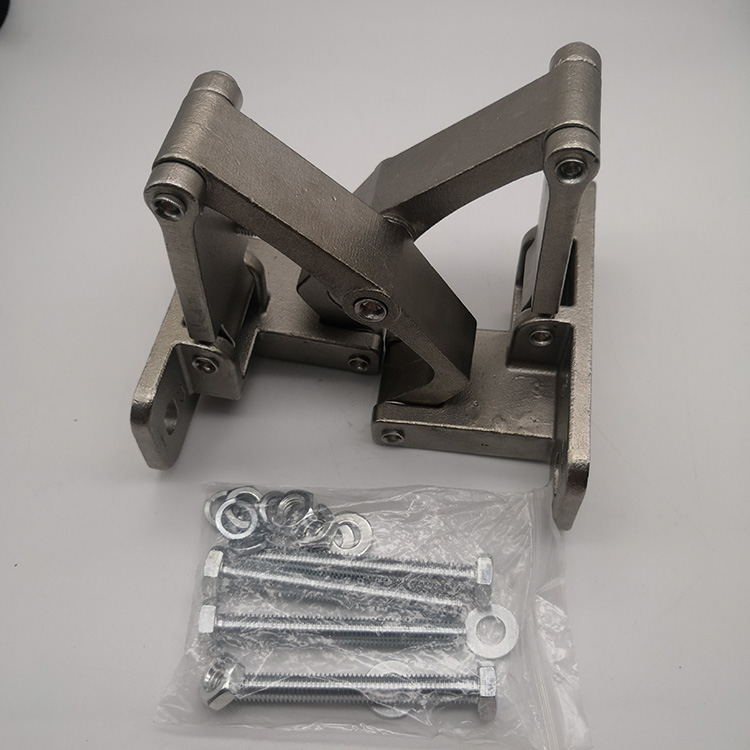

Adjusting concealed hinges for Stone gate
Jul 29,2020
Adjusting concealed hinges for Stone gate

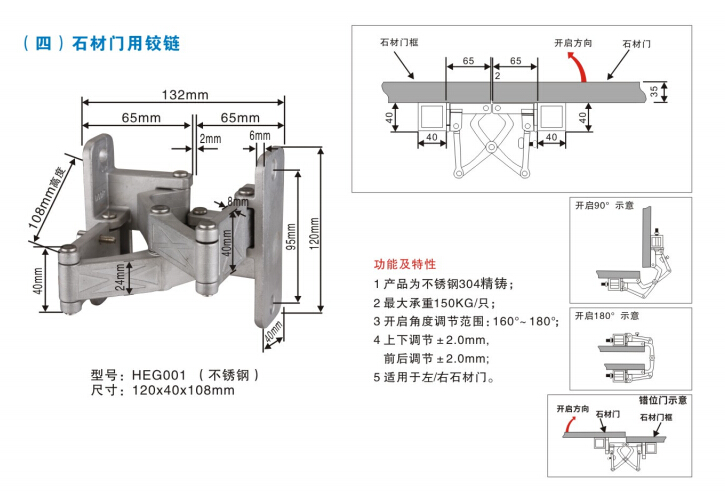

The product is SUS304 material
Carry the weights 150kg maximum

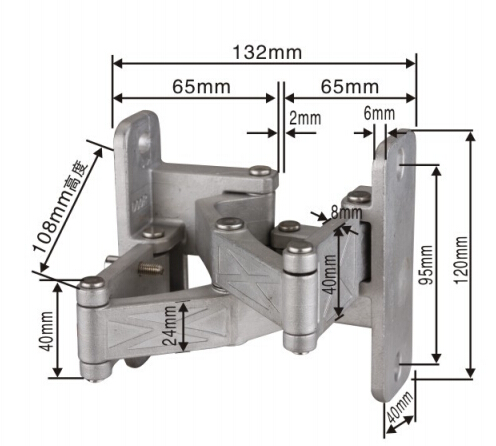

Door/frame：Length120x120 ，width：40x40mm
Maximum thickness of door plate：20mm
Opening Angle 160-180° maximum；
Can be realized up and down adjustment +-2.0mm
before and after the adjustment +-2.0mm;
easy to install and use;
Applicable to the left/right handle door tube well.
Video:Adjusting concealed hinges for Stone gate
About conceal hinge
