New Design Bronze Front Door Backset Mortise Entrance Door Lock
Model No.: 8202
For over 30 years, focusing on security around the door and lockset areas, we produce everything from mechanical locks to advanced biometric scanning devices, keeping every lock set solution simple and integrated.
| Model No.: | 8202 |
| Application: | Many kinds of wooden door and metal doors |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed. |
| Backset of Mortise Lock Case: Standard 2-3/4”(70mm). | |
| Auto-locking and anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function. |
| Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key. | |
| Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key. | |
| Customized keyway: Double-row-pin, , K | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D. |
| Door thickness: | Standard 41-50mm |
| Supplying finish: | AB (US 5) – Antique Brass |
| SN (US 15) – Satin Nickel | |
| AC(US)— Antique Copper | |
| SG – Satin True Gold | |
| ORB (US 10B) – Oil Rubbed Bronze | |
| SCH/CH – Satin Chrome / Chrome | |
| Package: | High quality color box. |
| Carton: | 4 sets/carton |

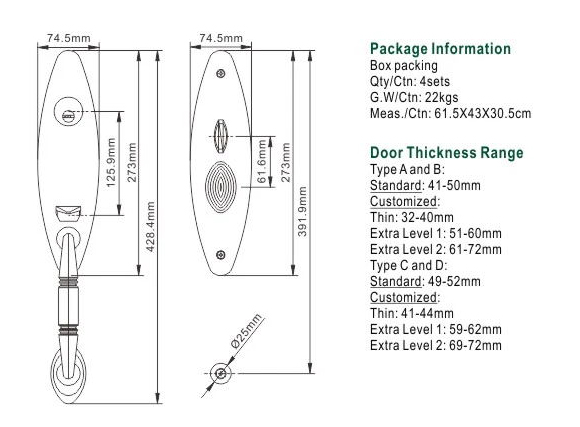

Specification and Packaging
| Plate size | 482.4*74.5/391.5*74.5mm |
| mortise lock size | 94.2*70mm |
| Door Thickness Fits | 46-53mm |
