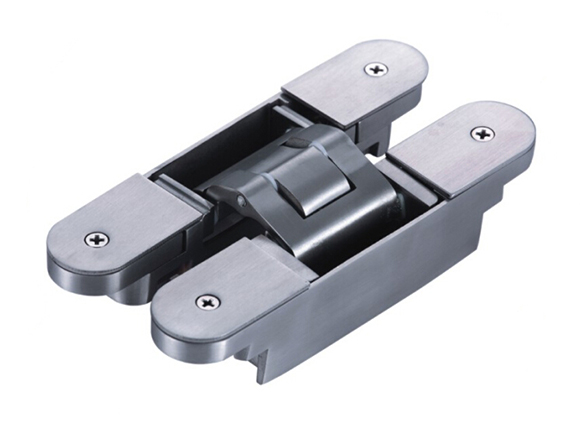

Stainless Steel 304 3D Adjust Invisible Hinge/ Conceal Hinge for Wooden Door

Model No.: EBG007

Features

1.For wooden doors:flush doors,aluminum doors; ;

2.concealed installation

3.3D adjustments:vertical +-3mm;

horizontal:+-3mm;

and depth:+-1mm(adjustable after installed)

4.Opening angle 180°;

5.With abrasion-resistant nylon sheet without lubricant;

Technical Data:

1.Max door weight with 3 hinges:60KG;

2.Min door thickness :40mm;

3.Max door width:1000m;

4.Doors are more than 2100mm  in height, 4 hinghes are required for each door ;

Specification and Packaging

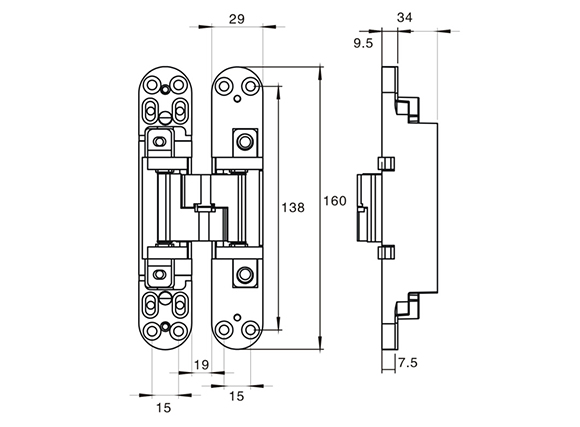

Dimension29x160x19mm
Max door weight660kg/3pcs
Min door thinckness40mm
