Zinc Alloy Entry Door Lock Set Security Lock Door Entrance Door Lock

Model No.: 8209

Model No.:  8209
Application:Many kinds of wooden door and metal doors
Trim:Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Mortise Lock: Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed.
Backset of Mortise Lock Case: Standard 2-3/4”(70mm).
Auto-locking and anti-panic function.
Easily reversible for left and right handing.
Cylinder: American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function.
Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key.
Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key.
Customized keyway: Double-row-pin, Kwi
Supplying function:Entrance, Dummy, Two-open Door.
Available type of inside trim:Type A, Type B, Type C, Type D.
Door thickness: Standard 41-50mm
Supplying finish:ASL – Antique silver
ACC – Antique Coffee Copper
DAB – Dim Antique Brass
AN (US 15A)- Antique Nichel
SG – Stain True Gold
ORB (US 10B)- Oil Rubbed Bronze
YB – Yellow Bronze
Package:  High quality color box.
Carton:4 sets/carton

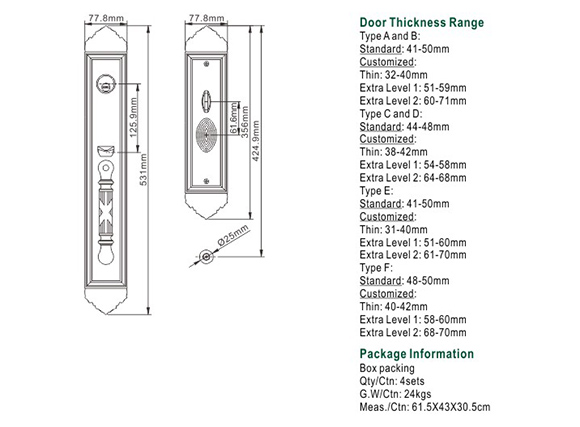

Specification and Packaging

Plate size531*77.8/356*77.8mm
mortise lock size94.2*70mm
Door Thickness Fits42-49mm
